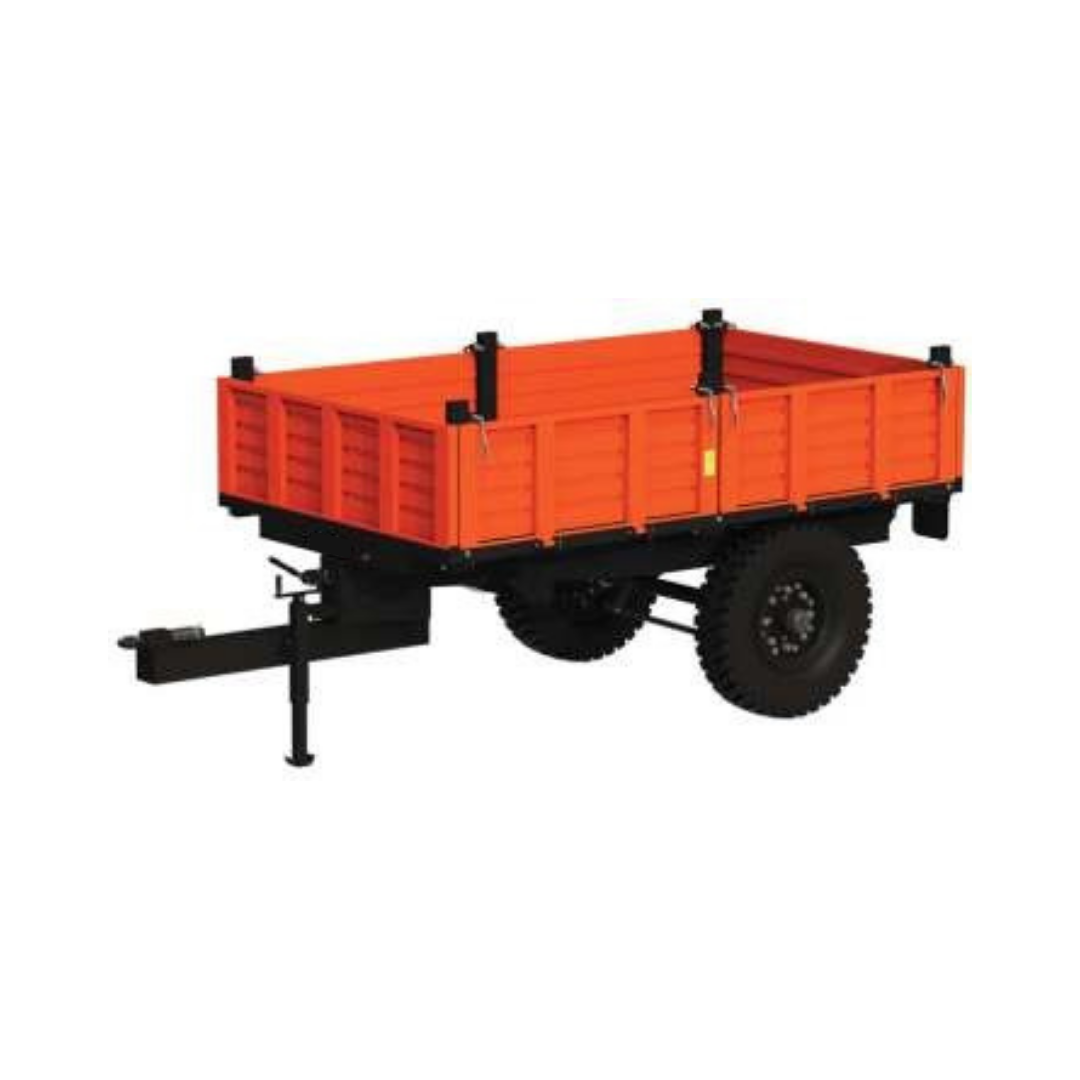

Tipping Trailers 2

BENEFITS It is used for transporting materials like seeds, fertilizers, implements etc. needed on the fields and also trans- porting the finished products to the warehouse/markets. Features:
  • It has been designed with a completely foldable layout. The front door is fixed while all other doors can be folded (dropped down) which ensures easy loading/unloading of materials.
  • CNC machined Hubs & Axles used in this trailor have been designed for maximum durability & reliability. The bearings placed in these hubs have a very high load bearing capacity, ensuring minimum wear& tear even in toughest usage conditions. Bearing & Hub are protected against water & mud entry using superior quality seals.
  • Brake light reflector & turn indicators have been provided on the trailor to ensure the safety of the operator as well as the trailor.
  • Superior quality wider tyres have been used in this trailor to make sure that the trailor has a good grip on the land. This makes it more stable and ensures the operators safety.
Description 5 Ton Non-Tipping Trailers 4 Ton Non-Tipping Trailers 3 Ton Non-Tipping Trailers
Number of Wheels 2 2 2
Chassis (Size) (feet) 10 X 6 X 1.75
10 X 6 X 2
10 X 6 X 1.75 10 X 6 X 1.5
Tyre Size 9.00-16 / 7.50-16
Number of Axles Single
Disc Type Double Plate / Ring Disc
Tread Spacing (mm) 1545
Drawbar Length (mm) 1470
Axle (mm) 80
Hub Bolt (Nos) 8 Bolt 5 Bolt
Spring (Optional) 42″ / 36″
Platform 3.14/4 mm Thick Sheet
Main Chassis 6 X 3 / 8 X 3 4 X 2
