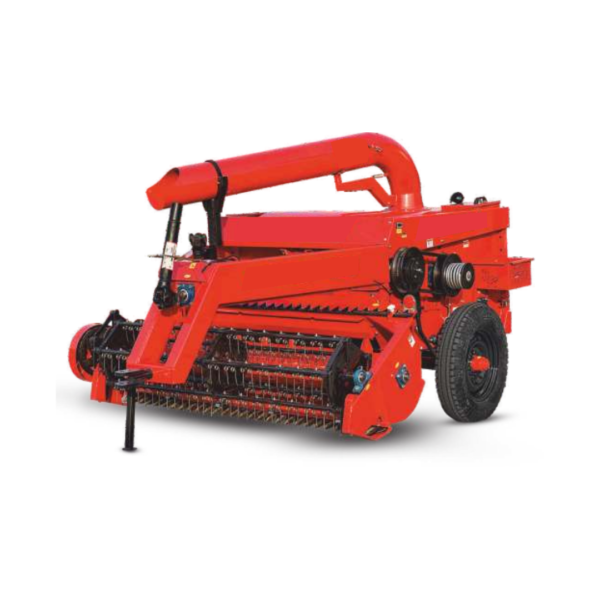

Straw Reaper
SALIENT FEATURES
- Heavy Duty Plate Body Chassis Straw Reaper Manufactured by Laser Cutting and CNC machines
- Powder Coating Paint
- High Quality Blades
| Feature | Specification |
| Chassis | 56″ (1423 mm) |
| Threshing Diameter | 22″ (558 mm) |
| Cutting Mechanism | |
| – Cutter Bar Width | 7 Feet (2134 mm) |
| – Tyres | 6.50.20 |
| Overall Dimensions (Transporting) | |
| – Length | 3370 mm |
| – Width | 2450 mm |
| – Height | 2015 mm |
| – Weight | 2000 kg |
| Cutting Capacity | 1–2 Acres per hour |
WORKING OF THE STRAW REAPER
The tines fixed on the rell pipes push the straw of wheat crop left after combine operation towards the oscillating cutter bar after which the harvested straw reaches the threshing drum. The wheat straw gets crushed in very small pieces in the threshing unit. The product fine straw is sucked by the blowers and is then pushed towards the outlet pipe by blower and which is collected in the trailer fitted with wire mesh.
