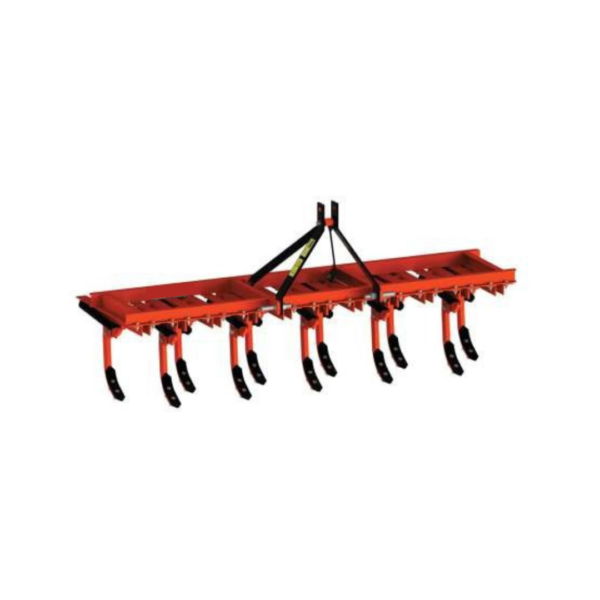

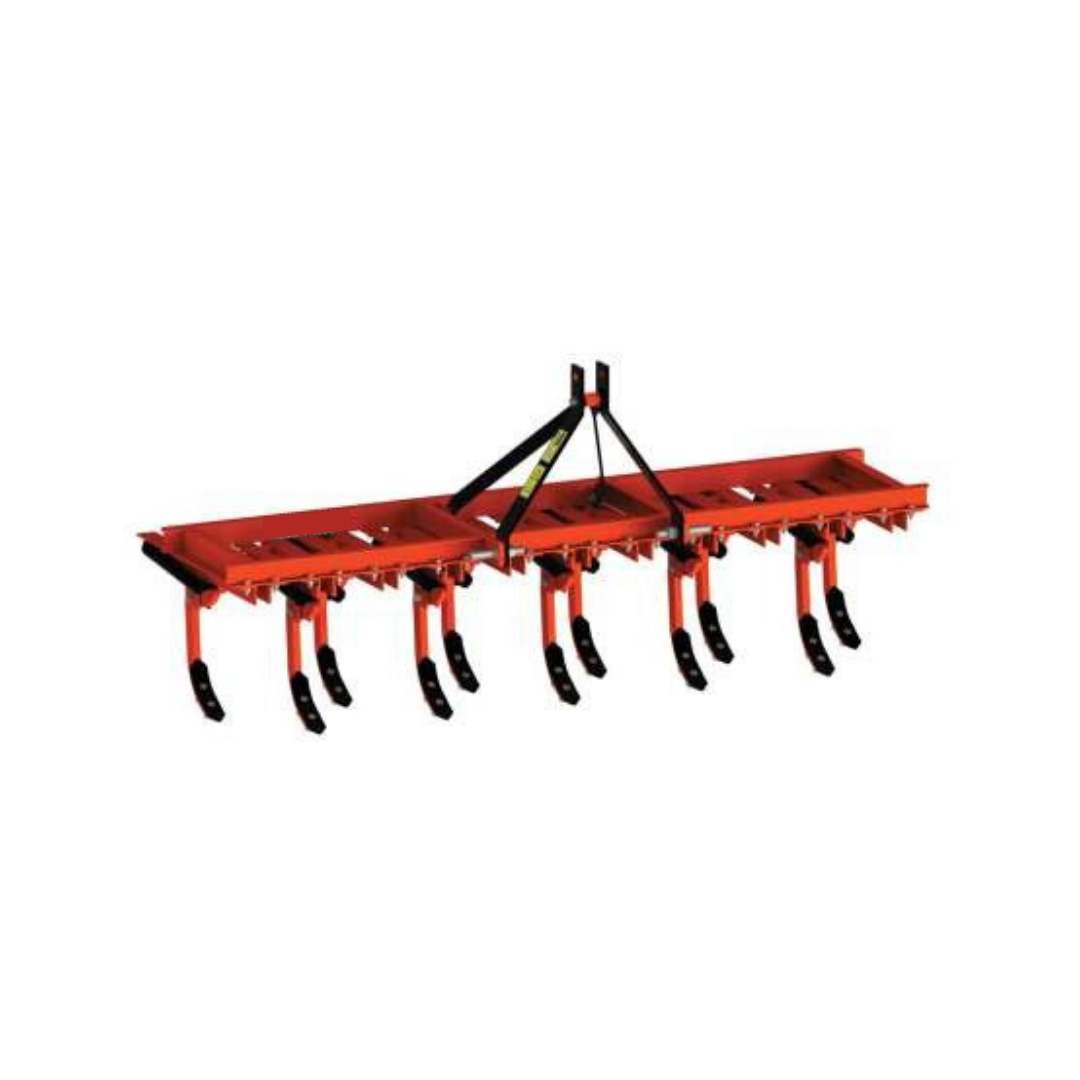

Spring Loaded Cultivator
- Spring loaded Tyne assemblies derive their strength from heavy duty angles which once fixed to the immensely strong main frame cannot move or strain out of position.
- “Extra Heavy Duty Type Spring Loaded Cultivator” is designed for toughest operations. It is suitable for hard top soil ,uproot stubbles and leaves.
- It is suitable hard top soil, uproot stubbles and leaves
- Provision for spacing adjustments between tines to be useful for various soil conditions and various crops.
- It can give the depth up to 7 to 9 inches in hard soil.
- The spring-loaded tines swing back under break-away pressure of 163Kg: pass over the obstruction and return to the working position without affecting the working depth of the implement.
| Description | 7 Tyne | 9 Tyne | 11 Tyne | 13 Tyne | 15 Tyne |
| Mounting CAT | Cat II (75 × 12) | ||||
| Main Frame (mm) | 75 × 40 Channel, 65 × 65 × 5mm support angles for tynes | 100 × 50 mm Channel, 65 × 65 × 6mm support angles for tynes | |||
| Size of Tyne (Material) | 25mm Thickness (EN8) | ||||
| Number of Coils (Nos) | Spring Coils (50) | ||||
| Overall Dimensions (LXWXH) (Approx. mm) | 900 × 1610 × 965 | 900 × 2020 × 965 | 900 × 2475 × 965 | 900 × 2932 × 965 | 900 × 3390 × 965 |
| Number of Springs | 14 | 18 | 22 | 26 | 30 |
| Shovel Thickness (mm) (Material) | 8 mm (EN – 42) | ||||
| Working Width Range (Approx. mm) | 1400 | 1856 | 2312 | 2768 | 3224 |
| Spacing Between Tyne | 230 | ||||
| Weight (Approx. in Kgs) | 225 | 280 | 340 | 393 | 425 |
| Suitable HP Range | 35 – 50 | 35 – 50 | 55 – 70 | 70 – 80 | 70 – 80 |
