| Feature |
Specification |
| Model |
903 |
| Type |

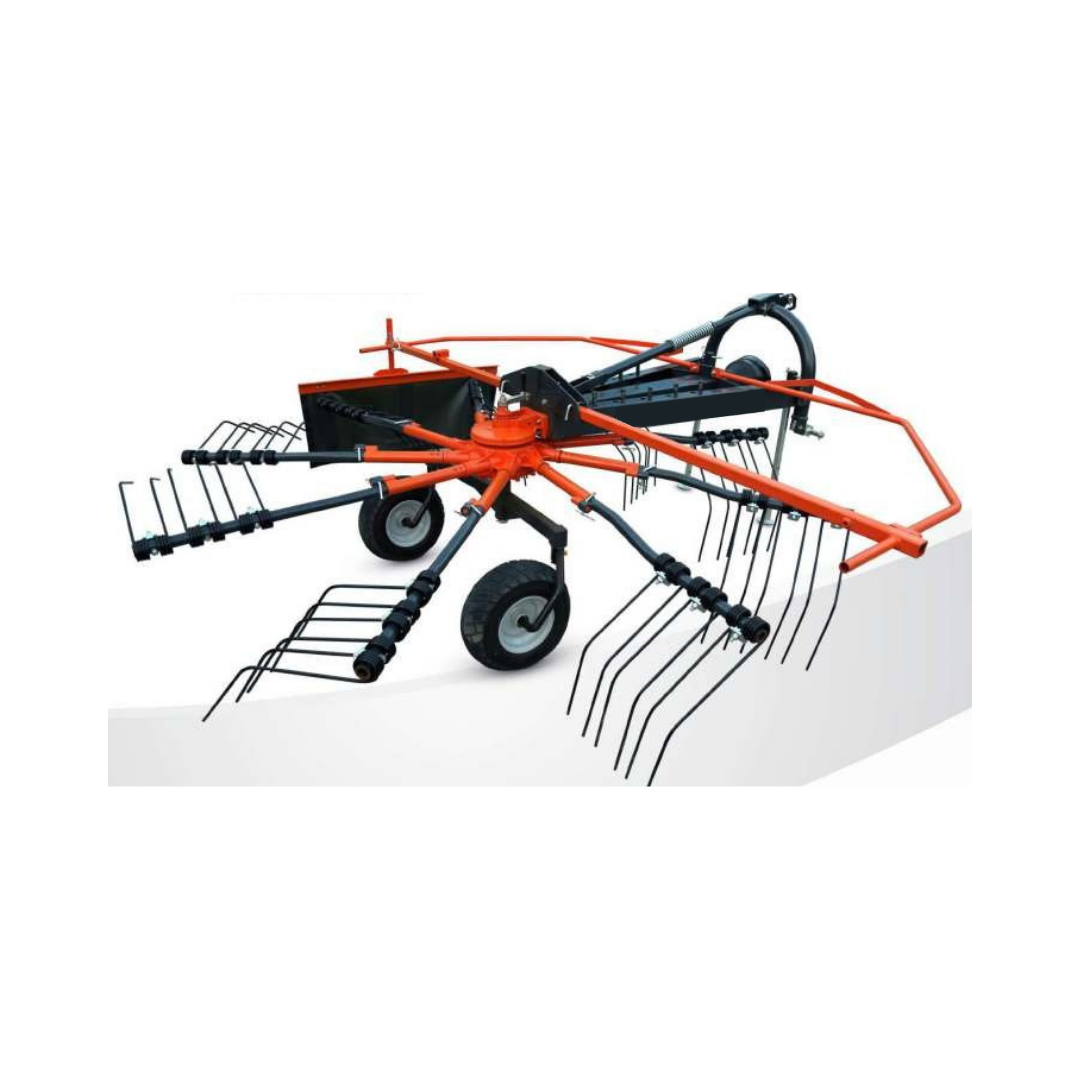

Rotary Rake |
| Position of Center of Gravity (A) |
1250 mm |
| Total Length of the Machine (W) |
3300 mm |
| Total Width of the Machine (L) (Working Step) |
3500 mm |
| Total Height of the Machine (H) (Working Step) |
1350 mm |
| Total Width of the Machine (L1) (Transport Phase) |
1400 mm |
| Total Height of the Machine (H1) (Transport Phase) |
2820 mm |
| Total Mass |
360 kg |
| Arms |
9 n. |
| Harvest Times |
27 n. |
| PTO Shaft |
Included |
| Torque Limiter |
300 Nm |
| Features of the Tyres |
| Dimensions of Machine Tyres |
16×6.5-8 |
| Inflation Pressure |
2.5 Bar |
| Tractor Requirements |
| Minimum Power |
20 CV |
| Recommended Power |
35 CV |
| Rear Lifting Unit |
1/2 Category |
| PTO Rotation Rate |
540 rpm |
| Splined Profile of the PTO Shaft |
1″ 3/8 Z=6 |
| Noise Level |
| Sound Level Detected at the Driver Seat |
75 dB(A) |
| Weight |
350 kg |
