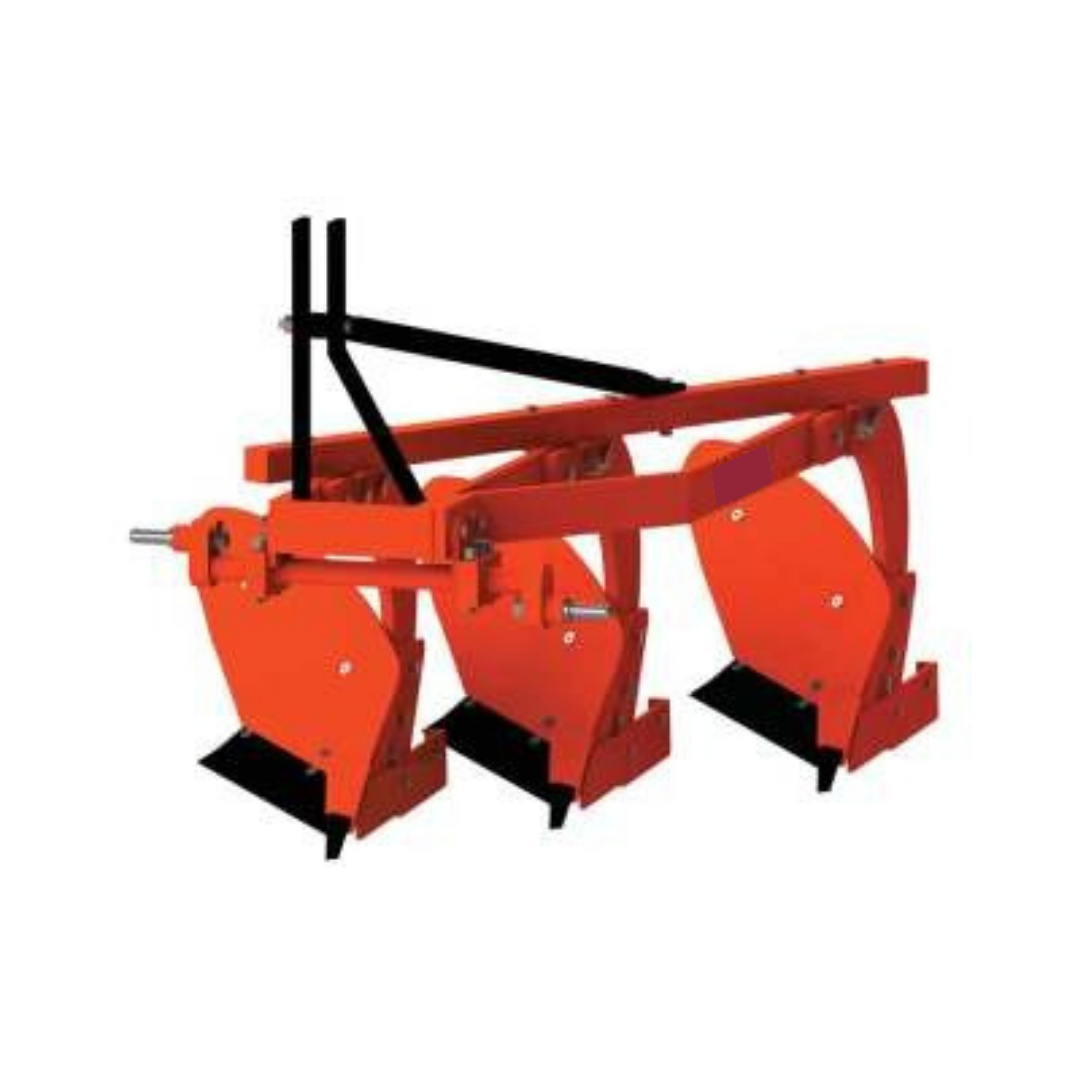

Mould Board Plough
- Bottom Mould Plough are tractor drawn conventional implement being widely used for primary tillage operations.
- Mould Board Plough can work & useful in very hard soil conditions and in soils where securing is a problem
- Made for high quality material and helps in better inversion of soil. The plough has special wear-resistant steel blade with bar points for toughest ploughing jobs.
- Low maintenance cost.
- Increase tractor stability.
- Bar point bottom ensures longer life as it can be extended or reversed and reused till the last possible length.
| Description | 2 MB Plough | 3 MB Plough | 4 MB Plough |
| Furrow | 2 | 3 | 4 |
|
Complete width of Cut in (Inch)
|
24″ | 36″ | 48″ |
| Mounting CAT | Cat II | ||
|
Overall dimension mm (L X W X H)
|
1370 X 920 X 1030 | 1700 x 1140 x 1030 |
2200 x 1340 x 1030
|
|
3 Point Linkage Flat
|
75 X 12T | ||
|
Depth of Cut (Inch)
|
8 to 12 | ||
|
Beam thickness (mm)
|
100 X 20 | 100 X 25 | |
|
Material of Shear Bar
|
40 X 25 (EN 45) | ||
|
Material of Shear Point
|
EN 8 | ||
|
Total Weight (Kgs. Approx.)
|
230 | 320 | 425 |
|
Suitable HP Range
|
45 to 55 | 55 to 70 | 70 to 90 |
