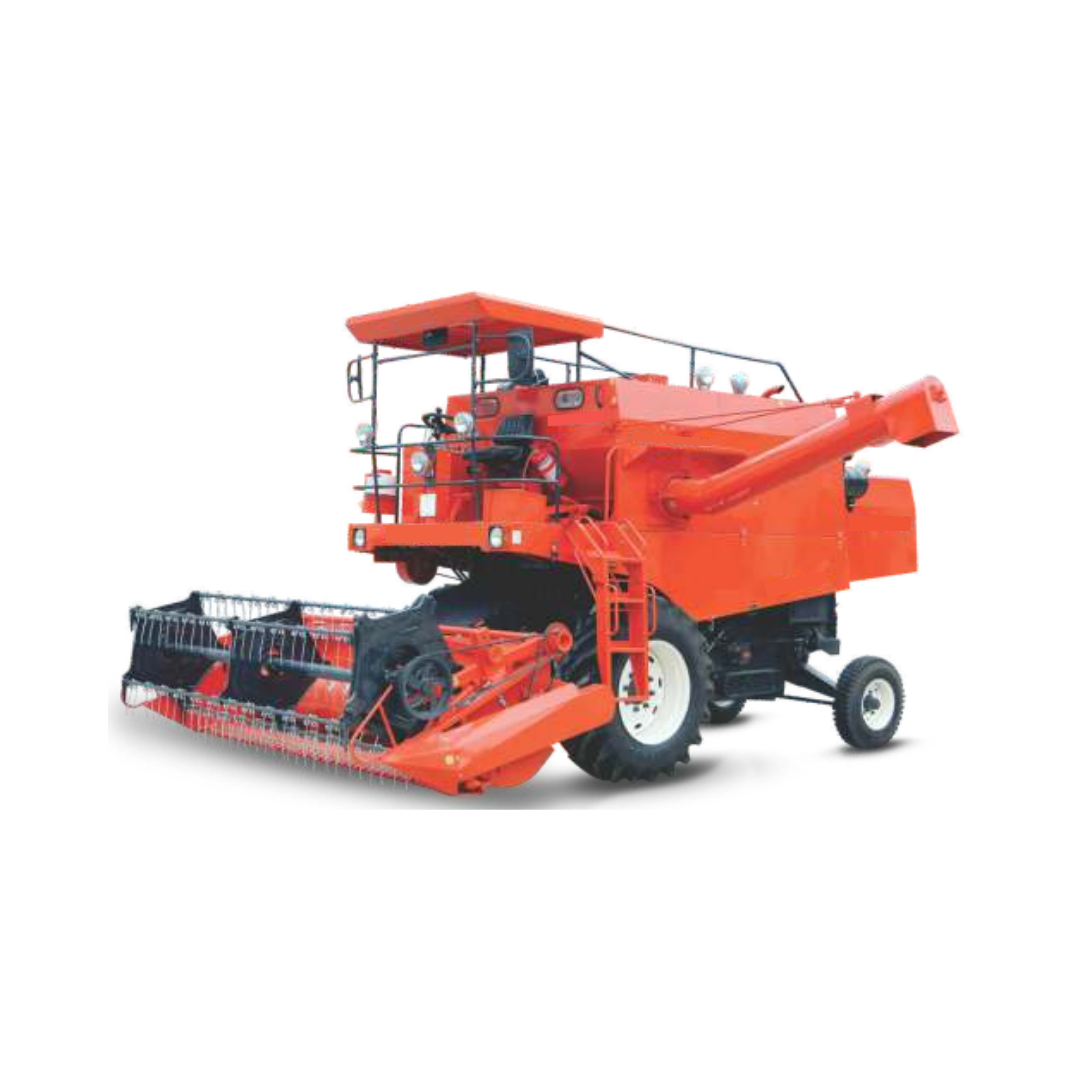

Mini Self Combine Harvester
Special Features:
- Available in 4 Straw walkers.
- 4×4 Available on Order.
- Best in segment
- grain unloading speed.
- Under body Diesel Tank.
- Extra Size sieves for better cleaning area.
| Feature | 9 Feet | 10 Feet |
| Combine Chassis | 31′ (787.4 mm) | 36′ (914.4 mm) |
| Straw Walker | 4 Nos. | 4 Nos. |
| Cutter Bar | 9 feet (2743.2 mm) | 10 feet (3048 mm) |
| Engine | ASHOK LEYLAND | |
| Model | ALU W04d | |
| Power | 76 HP @ 2200 rpm | |
| No. of Cylinder | Four | |
| Air Cleaner | Dry Type | |
| Cooling System | Water Cooled | |
| Clutch System | Single, Heavy Duty Dry Clutch | |
| Dia (mm) | 310 mm | |
| Transmission | 3 Forward & 1 Reverse (Double Lever) | |
| Threshing System | ||
| Thresher Width | 760 mm | 887 mm |
| Diameter | 510 mm | 510 mm |
| Range of Speed | ||
| Minimum | 680 @ 1800 rpm | 680 @ 1850 rpm |
| Maximum | 785 @ 1800 rpm | 870 @ 1850 rpm |
| Concave | ||
| Concave Width | 768 mm | 895 mm |
| Range of Clearance | ||
| Front (Wheat) | 13 mm | 13 mm |
| Rear (Wheat) | 17 mm | 17 mm |
| Rear (Paddy) | 40 mm | 40 mm |
| Front (Paddy) | 32 mm | 32 mm |
| Top Sieve Effective Area | 1.076 m² | 1.120 m² |
| Bottom Sieve Effective Area | 0.804 m² | 0.960 m² |
| Tyre | ||
| Front | 14.9×28-12 PR | |
| Rear | 7.50×16-8 PR | |
| Cutting Mechanism | ||
| Cutter Bar Width | 9 feet (2743.2 mm) | 10 feet (3048 mm) |
| Cutting Height | 30–1290 mm | 30–1290 mm |
| Grain Tank Capacity | ||
| Paddy | 900 Kg | 1000 Kg |
| Wheat | 1000 Kg | 1100 Kg |
| Diesel Tank | 200 Liter | 200 Liter |
| Overall Dimensions | ||
| Length (Transportation) | 9470 mm | 9775 mm |
| Width (Transportation) | 2530 mm | 3100 mm |
| Length (Working) | 6960 mm | 6960 mm |
| Width (Working) | 2530 mm | 3400 mm |
| Height | 3170 mm | 3170 mm |
| Total Weight | 5400 Kg Approx. | 5968 Kg Approx. |
| Cutting Capacity Approx. | ||
| Wheat | 1.5 Acre/Hour | 1.75 Acre/Hour |
| Paddy | 1.0 Acre/Hour | 1.25 Acre/Hour |
