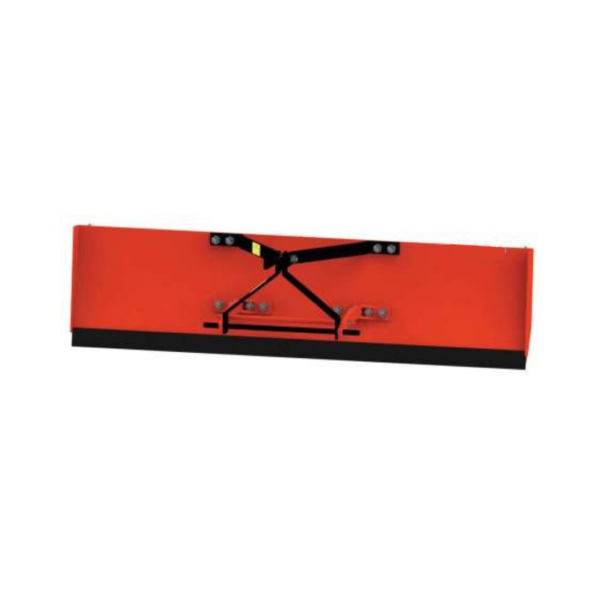

Land Leveller
- Land Leveller is ideal for leveling, filling, back filling and farmyard cleaning etc. Sharp edged hardened blades cuts weeds, clods, thrashes and uneven lands easily performing above expectations.
- Soil retaining wings can be optionally fitted on both ends of the blade for carrying the soil without spillage.
- It is suitable for sticky soils as well.
- Heavy Duty Land Leveler is ideal for leveling, filling farm yard clearing etc.
- It is easily mountable with three point linkage and controlled by hydraulic system of tractor.
| Description | 5 Feet | 6 Feet | 7 Feet | 8 Feet |
|
Working Width, mm
|
1525 | 1800 | 2100 | 2400 |
|
Cutting Blade Thickness mm
|
10 | |||
|
Support Flat (mm)
|
75 X 12 | |||
|
Blade Dim (mm)/Material
|
75 X 12/ EN8 | |||
|
Over All: Length x Width x Height (mm)
|
1250 X 1525 X 1050 | 1875 x 1225 x 1000 | 2175 x 1225 x 1000 |
1250 X 2450 X 1050
|
| Mounting | 3 point linkage (Cat II) | |||
| Weight Kgs | 140 | 187 | 198 | 220 |
|
Levelling direction
|
Regular | |||
| Linkage Pin | 28 mm | |||
|
Suitable HP Range
|
35-45 | 45-50 | 50 – 60 | 60 – 70 |
