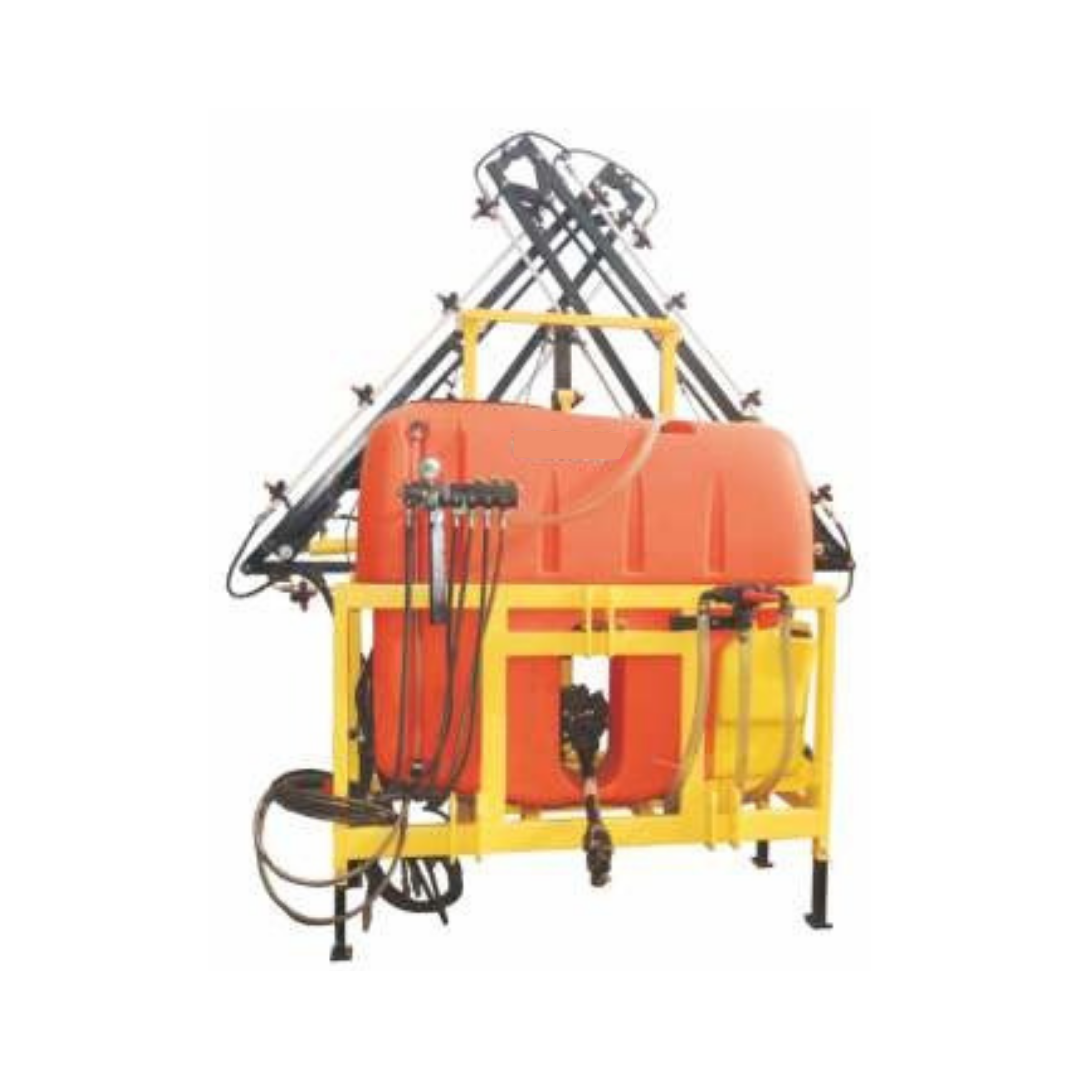

Hydraulic Boom Sprayer
- The control of insects, diseases and weeds is important for the growing of high – yielding crops or pasture of good quality. Applying the right amount of chemical at the right time is a major factor in ensuring successful control. Too many chemicals, particularly herbicides, may damage the crop and harm the environment; it will certainly waste money. Too little will also waste money because it will fail to give proper control.
- Tractor Mounted & Operated with the help of PTO pump.
- Spring loaded boom sections which avoid deflection of plants
- Water flow direction mixture tank suction filter pump control nozzle
| Model No | BMS-300 | BMS-400 | BMS-500 | BMS-600 | BMS-800 |
| Tank Capacity (Itr) | 300 | 400 | 500 | 600 | 800 |
| Type of pump | High Pressure Diaphragm Pump (Italian) | ||||
| Pump Capacity (Ipm) Boom Length (m) |
55,6 | 55,8 | 55,10 | 65,12 | 65,15 |
| Boom height Adjustment, m | 1 | ||||
| Ground Clearance, mm | 250 | ||||
| Number of Nozzles | 12 | 16 | 20 | 24 | 30 |
| Nozzle Spacing (cm) | |||||
| Nozzle Type | Anti Drip | ||||
| Boom Folding Actuation | Manual (Hydraulic Optional) | ||||
| Boom Height Adjustment | Mechanical (Hydraulic Optional) | ||||
| No. of Boom Sections | 3 | 5 | |||
| No. of Supply Section | 3 | 4 | |||
| Manifold Levers | 3 | ||||
| Boom Folding Type | Line | Cross | |||
| Anti-Accident Action | Spring Loaded | ||||
| Tractor HP | 24-36 | 36-45 | 40-50 | 50-60 | 60-70 |
| Mounting | CAT – I | ||||
| Working pressure, bar | 10 | ||||
| Types of filter | 80 mesh suction filter | ||||
