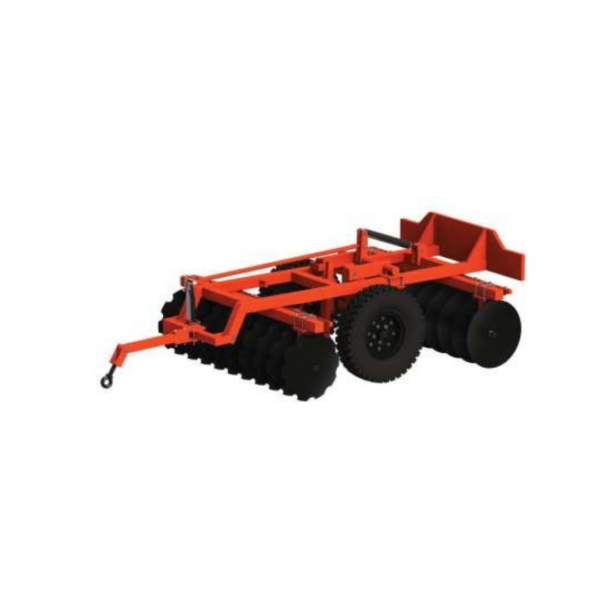

Center Tyre Disc Harrow
- Designed to work easily in tough operating conditions. Can be used for both, surface disc harrowing (superficial ploughing) and intensive deep ploughing.
- Easy to transport on the tyres using the hydraulic system.
- The long lasting and reliable tyres and hydraulic mechanism enable the operator to control the cut depth and facilitate in easy transportraton.
- Due to center tyre moving form one place to another place is balance and easy.
- High quality bearings and hubs ensure smooth operation and put minimum load on the tractor.
- High quality seals prevent the entry of mud and water into the bearings and hubs.
| Description | 18 Disc | 20 Disc | 22 Disc | 24 Disc | 28 Disc |
|
Type of mounting
|
Three point Hitch Linkage (CAT II) | ||||
|
Disc Dia (mm) (Optional)
|
660/610 / 560 | ||||
| Disc Type | Front: Notched, Rear: Plain | ||||
| Frame | 100 X 100 mm | 125 X 125 mm | |||
|
Disc Spacing (mm)
|
228.6(9”) | ||||
|
Maximum Depth (mm)
|
150-200 (Depends on soil moisture and field conditions) | ||||
|
Width of Cut & Shaft (mm)
|
( Adjustable), 50 X 50 | ||||
| Bearings Hub | 4 | 8 | |||
| Tyre Size | 8.25 X 16 Tyre | ||||
|
Suitable HP Range
|
70-90 | 90-140 | 140-165 | ||
